SAP PO: Generic Idoc Outbound Interface

As you can see in the picture we have a SAP PO – Generic IDoc Outbound Interface with multiple IDoc Operation in our iFlow.

Inhalte Anzeigen

Introduction

Often you have the requirement to create a set of IDoc interfaces as a kind of template implementation, especially for EDI communication scenarios.

Regarding the EDI use case, you might have created a single iFlow receiving the partner’s data and separate the incoming messages over operations.

For the other direction you realize the IDoc sender adapter requires a dedicated IDoc outbound interface with only one operation. So we cannot provide a single template interface with multiple operations for sending data to the partner, which is resolved here SAP PI B2B Add-on 3.0 – Outbound by using EDI separator. I want to engage the sending system in order to build the SAP PO – Generic IDoc Outbound Interface…

My workaround is inspired by the blog post „Michal’s PO tips: How to send messages directly to AEX (ICO) – adapter independent – SOAPUI version“ to implement the BAdI IDOC_XML_ENVELOPE_OU in order to wrap the XML IDoc into the SOAP envelope and adding the XI headers.

If you are also searching for a solution to either…

provide generic IDoc outbound interfaces
create acknowledgements per partner profile and not per IDoc sender channel (additional adapter module required for ALEAUDs)
setup a simple solution to create the serialization context for IDocs (based on Xpath)
-> Configuration instead of function module development
have a generic and single HTTP endpoint for XML-HTTP IDoc ports instead of creating multiples (one endpoint for each SAP PO outbound interface)
avoid header mappings for outbound interfaces in order to set the XI Party (KB: 1941832 – Resolve logical receiver party) or replace the virtual receiver Logical System (KB: 2728276 – Resolve logical receiver service for LS receiver)
send the IDoc to a dedicated iFlow having a virtual receiver, which could e.g. represent a dedicated SAP process. This helps to separate IDoc iFlows into business responsibilities and you could create IDoc iFlows without any dependency to any other IDoc interface.
(I know, it increases the amount of point2point interfaces, but if you ask business, I’m not sure they are interested in using as many integration patterns as possible 🙂
-> Less discussion about impact and regression testing after changing existing interfaces
use HTTP based communication instead of TRFC / ressource adapter configuration for sending IDocs, but still want the full/better SAP PO functionality (see restrictions) compared to the restricted default XML-HTTP port behavior
or
overcome the 16 character serialization context length

…this BAdI implementation and some little customizing might help you to achieve it with only a single iFlow.

BTW: No metadata is required anymore if you send it over HTTP-XML…

Please bear with me in case you find issues regarding the ABAP part,I’m still on beginner level.
I’m happy receive your ideas/use cases and feel free to provide any optimization proposals.

Warning: This BAdI is not yet used in production. So adjust it to your needs and test it carefully before using it in productive environments – No warranty for correctness, performance and no support can be provided! This is no SAP code. So it is 100% in your responsibility to troubleshoot and correct it in case of any issue.

Restrictions

You will not successfully receive back ALEAUDs without an additional adapter module.
ALEAUDs will stuck in SAP PO, not finding the corresponding inbound IDoc.
I’m checking if I can publish the module.
Your WE21 port name must match *PO[X]_* regex: ^.*PO.{0,1}_.*$ according to the code below.

Steps to implement the BAdI

Before building the SAP PO – Generic IDoc Outbound Interface, please check the perquisites.

Prerequisites

You should have at least basic ABAP development knowledge and create a package or know which development package needs to be selected before you continue with the next steps.

You must have at least 7.40 SAP Basis release to use the BAdI code below.

1. SAP PO SOAP sender channel (in SAP PO)

Make sure there is an active SOAP sender channel created for the Business System in where you implement the BAdI and this channel is used in ANY deployed iFlow/ICO, like shown in the referenced blog entry from above.

2. Create RFC Destination (SM59)

Type: G
Host: your SAP PO system (without protocol, like http[s]://)
Service Your SAP PO Http Port
Path Prefix: /XISOAPAdapter/MessageServlet?channel=:<SenderComponentName>:<ChannelName>
Setup Authentication

e.g. /XISOAPAdapter/MessageServlet?channel=:ER6_800:CC_SND_SOAP

Please note the colons which separate Party (empty in our case) from the sender system (business system)

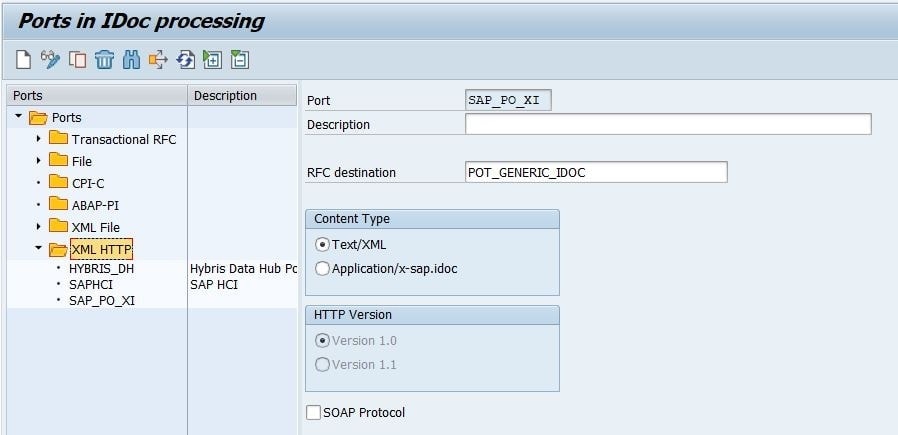

3. Create HTTP Idoc Port (WE21)

Name: SAP_PO_XI and assign it in the partner profile (copy/write the value manually if you do not find it with F4 help)

4. Create domains (SE11)

(Select domain, enter name and click create button for all 2)

Name: ZSSTRING
Description: <something you like>

Data Type: SSTRING
No. Characters: 1133
Lower Case: X

Name: ZRCVPRN
Description: <something you like>

Data Type: CHAR
No. Characters: 60
Lower Case: X

-> Save and activate both new domains

5. Create data elements (SE11)

(Select datatype, enter name and click create button, choose data element for all 2)

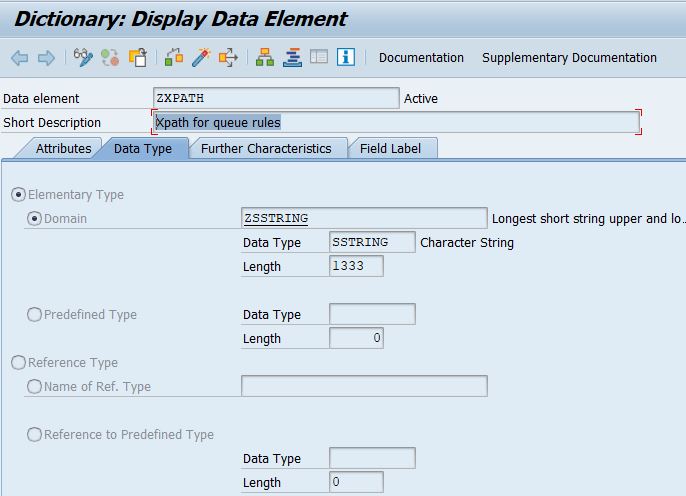

Name: ZXPATH
Description: <something you like>

Domain: ZSSTRING

Field Label Tab
Short: 10 <something you like>

Name: ZRCVPRN
Description: <something you like>

Domain: ZRCVPRN

Field Label Tab
Short: 10 <something you like>

-> Save and activate all 2 new data types

6. Create tables (SE11)

(Select database table, enter name and click create button for all 2)

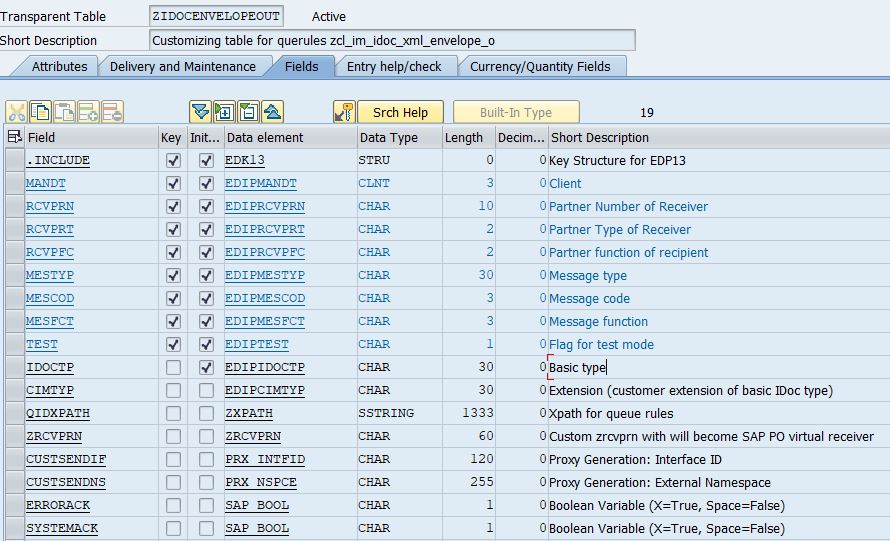

Name: ZIDOCENVELOPEOUT

Delivery and Maintenance Tab

Delivery Class: C
Data Browser/Table Maintenance: Display Maintenance Allowed

Fields Tab

Field	Data Element	Key
.INCLUDE	EDK13	X
IDOCTP	EDIPIDOCTP
CIMTYP	EDIPCIMTYP
QIDXPATH	ZXPATH
CUSTSENDIF	PRX_INTFID
CUSTSENDNS	PRX_NSPCE
ERRORACK	SAP_BOOL
SYSTEMACK	SAP_BOOL

-> Technical settings

Data Class: APPL0
Size Category: 0

Regarding Buffering I am not sure, I’ve chosen “Not Allowed”

Log data changes X (Check with Basis for profile parameter rec/client <client> to make use of it)+

-> Extras -> Enhancement category -> can be enhanced

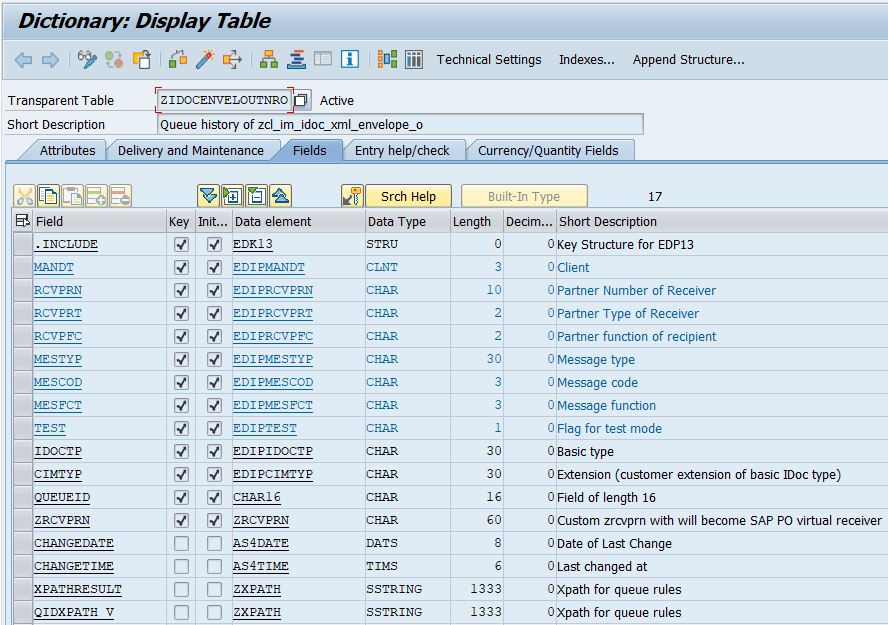

Name: ZIDOCENVELOUTNRO

Delivery and Maintenance Tab

Delivery Class: A
Data Browser/Table Maintenance: Display Maintenance Allowed with Restrictions

Fields Tab

Field	Data Element	Key
.INCLUDE	EDK13	X
IDOCTP	EDIPDOCTYP	X
CIMTYP	EDIPCIMTYP	X
QUEUEID	CHAR16	X
ZRCVPRN	ZRCVPRN	X
CHANGEDATE	AS4DATE
CHANGETIME	AS4TIME
XPATHRESULT	ZXPATH
QIDXPATH_V	ZXPATH

-> Technical settings

Data Class: APPL1
Size Category: 2

Regarding Buffering I am not sure, I’ve chosen “Not Allowed”

Log data changes [ ] No maintenance required -> no logging.

-> Extras -> Enhancement category -> can be enhanced

-> Save and activate both new database tables | ignore warnings about key length

7. Create number range object (SNRO)

(Select datatype, enter name and click create button, choose data element)

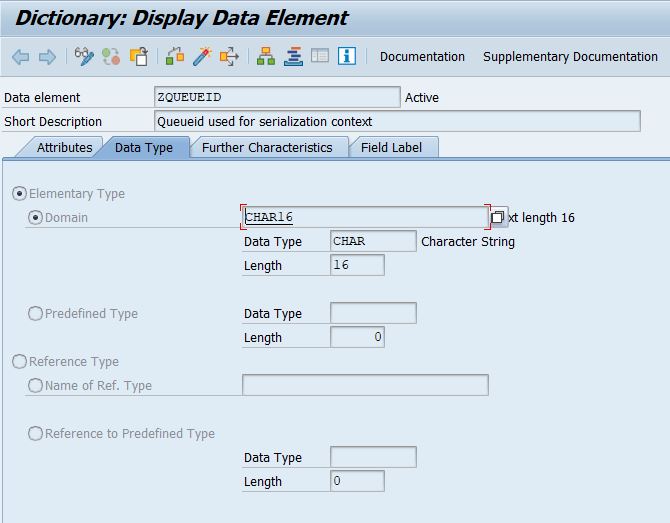

Name: ZQUEUEID

ShortTxt: <something you like>

Number length domain: char16
Buffering: No (if you don’t like gaps)

Interval name: Z1
From: 0000000000000001
To: 9999999999999999

8. Create the BAdI class (SE18)

(Select BAdI Name, enter IDOC_XML_ENVELOPE_OU and click display button)

Transaction-Code: SE18
BAdI Name: IDOC_XML_ENVELOPE_OU

-> Implementation -> Create

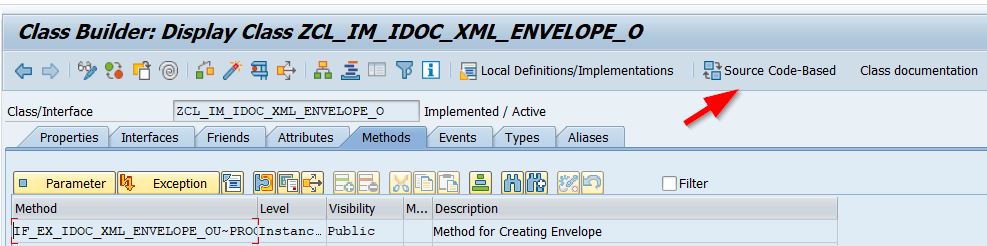

Name: ZIDOC_XML_ENVELOPE_O

(enter name and click OK (green arrow) button)

Tab Interface

Double-click on PROCESS

(Click on Source code Based)

Copy and insert the code.
Save and activate it.

CLASS zcl_im_idoc_xml_envelope_o DEFINITION
  PUBLIC
  FINAL
  CREATE PUBLIC .
  PUBLIC SECTION.
    INTERFACES if_ex_idoc_xml_envelope_ou .
  PROTECTED SECTION.
  PRIVATE SECTION.
    CONSTANTS gc_idoc_xml_envelope_ou_name TYPE string VALUE 'ZCLIMIDOCXMLENV_O' ##NO_TEXT.
    CONSTANTS gc_idoc_xml_envelope_ou_rcvpor TYPE string VALUE '^.*PO.{0,1}_.*$' ##NO_TEXT.
    CONSTANTS gc_idoc_xml_zidocenvelpout_v TYPE string VALUE 'ZIDOCENVELOPEOUT' ##NO_TEXT.
    CONSTANTS gc_direct_outbound TYPE string VALUE '1' ##NO_TEXT.
    METHODS create_message
      IMPORTING
        !iv_msgno         TYPE edi_stamno
        !iv_msgv1         TYPE any OPTIONAL
        !iv_msgv2         TYPE any OPTIONAL
        !iv_msgv3         TYPE any OPTIONAL
        !iv_msgv4         TYPE any OPTIONAL
      RETURNING
        VALUE(rs_message) TYPE idocstatmp .
    METHODS evaluate_xpath
      IMPORTING
        !idoc_string  TYPE string
        !xpath        TYPE zxpath
      RETURNING
        VALUE(result) TYPE string .
    METHODS getqueueid
      IMPORTING
        !control       TYPE edidc
        !xpath         TYPE zxpath
        !xpathresult   TYPE zxpath
        !zrcvprn       TYPE zrcvprn
      RETURNING
        VALUE(queueid) TYPE char16 .
    METHODS findenveloperecord
      IMPORTING
        !control          TYPE edidc
        !xpath            TYPE zxpath
        !xpathresult      TYPE zxpath
        !zrcvprn          TYPE zrcvprn
      RETURNING
        VALUE(env_record) TYPE zidocenveloutnro .
ENDCLASS.
CLASS ZCL_IM_IDOC_XML_ENVELOPE_O IMPLEMENTATION.
* <SIGNATURE>---------------------------------------------------------------------------------------+
* | Instance Private Method ZCL_IM_IDOC_XML_ENVELOPE_O->CREATE_MESSAGE
* +-------------------------------------------------------------------------------------------------+
* | [--->] IV_MSGNO                       TYPE        EDI_STAMNO
* | [--->] IV_MSGV1                       TYPE        ANY(optional)
* | [--->] IV_MSGV2                       TYPE        ANY(optional)
* | [--->] IV_MSGV3                       TYPE        ANY(optional)
* | [--->] IV_MSGV4                       TYPE        ANY(optional)
* | [<-()] RS_MESSAGE                     TYPE        IDOCSTATMP
* +--------------------------------------------------------------------------------------</SIGNATURE>
  METHOD create_message.
* Check for consistency
    IF iv_msgno IS INITIAL.
      RAISE EXCEPTION TYPE cx_fatal_exception.
    ENDIF.
    CLEAR rs_message.
* Fill message structure
    rs_message-stamid = gc_idoc_xml_envelope_ou_name.
    rs_message-stamno = iv_msgno.
    IF iv_msgv1 IS SUPPLIED.
      rs_message-stapa1 = iv_msgv1.
    ENDIF.
    IF iv_msgv2 IS SUPPLIED.
      rs_message-stapa2 = iv_msgv2.
    ENDIF.
    IF iv_msgv3 IS SUPPLIED.
      rs_message-stapa3 = iv_msgv3.
    ENDIF.
    IF iv_msgv4 IS SUPPLIED.
      rs_message-stapa4 = iv_msgv4.
    ENDIF.
    rs_message-repid = sy-repid.
  ENDMETHOD.
* <SIGNATURE>---------------------------------------------------------------------------------------+
* | Instance Private Method ZCL_IM_IDOC_XML_ENVELOPE_O->EVALUATE_XPATH
* +-------------------------------------------------------------------------------------------------+
* | [--->] IDOC_STRING                    TYPE        STRING
* | [--->] XPATH                          TYPE        ZXPATH
* | [<-()] RESULT                         TYPE        STRING
* +--------------------------------------------------------------------------------------</SIGNATURE>
  METHOD evaluate_xpath.
    DATA: separator(1) TYPE c VALUE '&',
          full         TYPE abap_bool.
*    DESCRIBE FIELD result LENGTH DATA(clen) IN CHARACTER MODE.                 " no neeed to loop more than max length
    DATA(xpp) = NEW cl_proxy_xpath( ).
    xpp->set_source_string( idoc_string ).
    xpp->run( expression = xpath ).
    DATA(nodes) = xpp->get_nodes( ).
    IF NOT nodes IS INITIAL.
      DATA(node) = nodes->get_next( ).
      WHILE node IS BOUND AND NOT node IS INITIAL AND NOT full = abap_true.
        DATA(s) = node->get_value( ).
        DATA(typ) = node->get_type( ).
        CONCATENATE result s INTO result SEPARATED BY separator .
        node = nodes->get_next( ).
      ENDWHILE.
      REPLACE REGEX '^' && separator && '+|' && separator && '+$' IN result WITH ''.                                     " remove pipe at the end if there is one
    ENDIF.
  ENDMETHOD.
* <SIGNATURE>---------------------------------------------------------------------------------------+
* | Instance Private Method ZCL_IM_IDOC_XML_ENVELOPE_O->FINDENVELOPERECORD
* +-------------------------------------------------------------------------------------------------+
* | [--->] CONTROL                        TYPE        EDIDC
* | [--->] XPATH                          TYPE        ZXPATH
* | [--->] XPATHRESULT                    TYPE        ZXPATH
* | [--->] ZRCVPRN                        TYPE        ZRCVPRN
* | [<-()] ENV_RECORD                     TYPE        ZIDOCENVELOUTNRO
* +--------------------------------------------------------------------------------------</SIGNATURE>
  METHOD findenveloperecord.
    SELECT * FROM  zidocenveloutnro
   WHERE  rcvprt   = @control-rcvprt
   AND    rcvprn   = @control-rcvprn
   AND    rcvpfc   = @control-rcvpfc
   AND    mestyp   = @control-mestyp
   AND    mescod   = @control-mescod
   AND    mesfct   = @control-mesfct
   AND    test     = @control-test
   AND    idoctp   = @control-idoctp
   AND    cimtyp   = @control-cimtyp
   AND xpathresult = @xpathresult
   AND zrcvprn     = @zrcvprn
   AND qidxpath_v  = @xpath
      INTO @env_record.
    ENDSELECT.
  ENDMETHOD.
* <SIGNATURE>---------------------------------------------------------------------------------------+
* | Instance Private Method ZCL_IM_IDOC_XML_ENVELOPE_O->GETQUEUEID
* +-------------------------------------------------------------------------------------------------+
* | [--->] CONTROL                        TYPE        EDIDC
* | [--->] XPATH                          TYPE        ZXPATH
* | [--->] XPATHRESULT                    TYPE        ZXPATH
* | [--->] ZRCVPRN                        TYPE        ZRCVPRN
* | [<-()] QUEUEID                        TYPE        CHAR16
* +--------------------------------------------------------------------------------------</SIGNATURE>
  METHOD getqueueid.
    DATA: enqueued  TYPE abap_bool,
          wa_record TYPE zidocenveloutnro,
          rc        TYPE inri-returncode,
          loops     TYPE n VALUE 1,
          maxloops  TYPE i VALUE 10.
    TRY.
* Query to get the unique (single) record if same was already processed.
        wa_record =  me->findenveloperecord( control = control  xpath  = xpath xpathresult = xpathresult zrcvprn = zrcvprn ).
        WHILE NOT enqueued EQ abap_true AND loops < maxloops  AND wa_record IS INITIAL.   " enqueue table for insert
          loops = loops + 1.                                                              " avoid endless loop
* Enqueue for insert, if new
          CALL FUNCTION 'ENQUEUE_E_TABLE'
            EXPORTING
              mode_rstable = 'E'
              _wait        = 'X'
              tabname      = 'ZIDOCENVELOUTNRO'.
          IF sy-subrc = 0.
            enqueued = abap_true.
          ELSE.
            IF loops >=  maxloops .
              RAISE EXCEPTION TYPE cx_abap_pragma_enqueue.
            ENDIF.
            WAIT UP TO 2 SECONDS.
          ENDIF.
* Check again to make sure no insert happened during wait for enqueue
          wa_record =  me->findenveloperecord( control = control  xpath  = xpath xpathresult = xpathresult zrcvprn = zrcvprn ).
          IF enqueued EQ abap_true AND wa_record IS INITIAL.
            " should only be reached if enqued
            IF xpathresult IS NOT INITIAL.                                              " only if serialization is required
              CALL FUNCTION 'NUMBER_GET_NEXT'
                EXPORTING
                  nr_range_nr = 'Z1'
                  object      = 'ZQUEUEID'
                IMPORTING
                  number      = queueid
                  returncode  = rc.
              IF sy-subrc <> 0 OR rc <> 0.
                RAISE EXCEPTION TYPE cx_abap_load_error.
              ENDIF.
            ENDIF.
            wa_record = VALUE #( BASE CORRESPONDING #( control ) qidxpath_v = xpath xpathresult = xpathresult changedate = sy-datum changetime = sy-uzeit queueid = queueid zrcvprn = zrcvprn ).
            INSERT INTO zidocenveloutnro VALUES wa_record.
            COMMIT WORK.
          ENDIF.
*end of enque, if new
        ENDWHILE.
* return queueid (also empty/initial ones) if successfully retrieved otherwise exception
        IF wa_record IS NOT INITIAL.
          queueid = wa_record-queueid.
        ELSE.
          RAISE EXCEPTION TYPE cx_abap_load_error.
        ENDIF.
      CATCH cx_root.
        RAISE EXCEPTION TYPE cx_abap_load_error.
      CLEANUP.
        IF enqueued EQ abap_true.
          CALL FUNCTION 'DEQUEUE_E_TABLE'
            EXPORTING
              mode_rstable = 'E'
              tabname      = 'ZIDOCENVELOUTNRO'.
          IF sy-subrc <> 0.
            RAISE EXCEPTION TYPE cx_abap_load_error.
          ENDIF.
        ENDIF.
    ENDTRY.
  ENDMETHOD.
* <SIGNATURE>---------------------------------------------------------------------------------------+
* | Instance Public Method ZCL_IM_IDOC_XML_ENVELOPE_O->IF_EX_IDOC_XML_ENVELOPE_OU~PROCESS
* +-------------------------------------------------------------------------------------------------+
* | [--->] IDOC_XML                       TYPE        XSTRING
* | [--->] CONTROL                        TYPE        EDIDC
* | [<---] OUTBOUND_XML                   TYPE        XSTRING
* | [<---] ERROR                          TYPE        CHAR1
* | [<---] PROTOCOL                       TYPE        IDOCSTATMP
* +--------------------------------------------------------------------------------------</SIGNATURE>
  METHOD if_ex_idoc_xml_envelope_ou~process.
    TYPE-POOLS: ixml.
    DATA: lo_stream_factory TYPE REF TO if_ixml_stream_factory,
          lo_input_stream   TYPE REF TO if_ixml_istream,
          lo_output_stream  TYPE REF TO if_ixml_ostream,
          lo_document       TYPE REF TO if_ixml_document,
          lo_parser         TYPE REF TO if_ixml_parser,
          lo_parse_error    TYPE REF TO if_ixml_parse_error,
          lo_renderer       TYPE REF TO if_ixml_renderer,
          lo_ixml           TYPE REF TO if_ixml.
    DATA:
      lv_idocout_s TYPE string,
      errorcount   TYPE integer VALUE 0.
* Reset exporting parameters
    CLEAR outbound_xml.
    CLEAR error.
    CLEAR protocol.
*+-------------------------------------------------------------------------------------------------+
* Do initial checks and return if they are not fullfilled with original payload
*+-------------------------------------------------------------------------------------------------+
    outbound_xml = idoc_xml.
    IF idoc_xml IS INITIAL.
      RETURN.                                            " Exit anyway
    ENDIF.
* Check the port to be relevant
    DATA: portmatch         TYPE match_result.
    FIND FIRST OCCURRENCE OF REGEX gc_idoc_xml_envelope_ou_rcvpor IN control-rcvpor RESULTS portmatch.
    IF portmatch IS INITIAL.                            " IDOC receiver port is not a *PO[x]_ destiantion
      RETURN.
    ENDIF.
    IF control-direct <> gc_direct_outbound.            "  Direction is not "1 - Outbound"
      RETURN.
    ENDIF.
    TRY.
* +-------------------------------------------------------------------------------------------------+
* | Convert xstring to string, default UTF-8 encoding
* +-------------------------------------------------------------------------------------------------+
        DATA(idoc_string) = cl_abap_codepage=>convert_from( source =  idoc_xml ).
* +-------------------------------------------------------------------------------------------------+
* | Save for later and now remove XML declaration from incoming XML
* +-------------------------------------------------------------------------------------------------+
        DATA: matches         TYPE match_result,
              xml_declaration TYPE string.
        FIND FIRST OCCURRENCE OF REGEX '<\?xml.*\?>' IN idoc_string RESULTS matches.
        xml_declaration = idoc_string+matches-offset(matches-length).
        REPLACE REGEX '<\?xml.*\?>' IN idoc_string WITH ''.
* +-------------------------------------------------------------------------------------------------+
* | Retrieve UUID as sysuuid_x
* +-------------------------------------------------------------------------------------------------+
        DATA: uuid TYPE sysuuid_x.
        CALL FUNCTION 'SYSTEM_UUID_CREATE'
          IMPORTING
            uuid = uuid.
* +-------------------------------------------------------------------------------------------------+
* | Format Message ID with hyphens as string
* +-------------------------------------------------------------------------------------------------+
        DATA(msgid) = cl_soap_wsrmb_helper=>convert_uuid_raw_to_hyphened( uuid ).
* +-------------------------------------------------------------------------------------------------+
* | Get UTC timestamp
* +-------------------------------------------------------------------------------------------------+
        DATA: lv_utc TYPE timestamp.
        cl_abap_tstmp=>systemtstmp_syst2utc(
          EXPORTING
            syst_date = sy-datum
            syst_time = sy-uzeit
         IMPORTING
           utc_tstmp = lv_utc ).
        errorcount = errorcount + sy-subrc.
* +-------------------------------------------------------------------------------------------------+
* | Convert UTC timestamp into ISO format as string
* +-------------------------------------------------------------------------------------------------+
        DATA: ts TYPE string.
        ts = cl_xlf_date_time=>create( timestamp = lv_utc ).
* +-------------------------------------------------------------------------------------------------+
* | Retrieve business system name from SLD for sender service
* +-------------------------------------------------------------------------------------------------+
        DATA: bs_name TYPE text60,
              bs_capt TYPE string,
              bs_role TYPE lcr_bs_role.
        CALL FUNCTION 'LCR_GET_OWN_BUSINESS_SYSTEM'
          EXPORTING
            bypassing_cache              = ' '
            read_from_cache              = ' '
            update_cache_entry_timestamp = ' '
          IMPORTING
            bs_key_name                  = bs_name
            bs_caption                   = bs_capt
            bs_role                      = bs_role.
        errorcount = errorcount + sy-subrc.
* +-------------------------------------------------------------------------------------------------+
* | Get data from the customizing table
* +-------------------------------------------------------------------------------------------------+
        SELECT SINGLE * FROM  zidocenvelopeout
               WHERE  rcvprt   = @control-rcvprt
               AND    rcvprn   = @control-rcvprn
               AND    rcvpfc   = @control-rcvpfc
               AND    mestyp   = @control-mestyp
               AND    mescod   = @control-mescod
               AND    mesfct   = @control-mesfct
               AND    idoctp  = @control-idoctp
               AND    cimtyp   = @control-cimtyp INTO @DATA(custv).
* +-------------------------------------------------------------------------------------------------+
* | Do the mapping of RCVPRN, which might be required for party due to SAP PO not accepting numbers
* +-------------------------------------------------------------------------------------------------+
        DATA: rcvprn TYPE zrcvprn.
        IF custv-zrcvprn IS NOT INITIAL.
          rcvprn = custv-zrcvprn.
        ELSE.
          rcvprn = control-rcvprn.
        ENDIF.
* +-------------------------------------------------------------------------------------------------+
* | Run the Xpath evaluation which is required to set serialization context (QueueId) in SAP PO
* +-------------------------------------------------------------------------------------------------+
        DATA: xpathresult TYPE zxpath .
        IF custv-qidxpath IS NOT INITIAL.
          IF custv-qidxpath(1) = ''''.
            xpathresult = custv-qidxpath.
            REPLACE ALL OCCURRENCES OF '''' IN xpathresult WITH ''.
          ELSE.
            xpathresult = me->evaluate_xpath( idoc_string = idoc_string xpath = custv-qidxpath ).
          ENDIF.
          IF xpathresult IS INITIAL.
            protocol = create_message(
            iv_msgno = '006'
            iv_msgv1 = 'Xpath found no value'
            iv_msgv2 = 'Badi: ZCL_IM_IDOC_XML_ENVELOPE_O').
            error = abap_true.
            RETURN.
          ENDIF.
        ENDIF.
* +-------------------------------------------------------------------------------------------------+
* | Data preparation steps
* +-------------------------------------------------------------------------------------------------+
        DATA:          systemack TYPE string,
                       errorack  TYPE string,
                       defaultif TYPE string,
                       queueid   TYPE char16.
        defaultif = control-mestyp && '.' && control-idoctp && '.' && control-cimtyp. "In case no custom Idoc interface required
        REPLACE REGEX '\.$' IN defaultif WITH '' .                                    " remove dot at the end in case no cimtype
        IF custv-systemack = abap_false.                                             " convert to xsd:boolean
          systemack = 'false'.
        ELSE.
          systemack = 'true'.
        ENDIF.
        IF custv-errorack = abap_false.
          errorack = 'false'.
        ELSE.
          errorack = 'true'.
        ENDIF.
        " will also be called in case no queuueid is required for join of view ZIDOCENVELPOUT_V
        queueid = me->getqueueid( control = control xpath = custv-qidxpath xpathresult = xpathresult zrcvprn = custv-zrcvprn  ).
* +-------------------------------------------------------------------------------------------------+
* | Add SAP PO SOAP envelope around xml to fill xi protocol parameters dnyamically
* +-------------------------------------------------------------------------------------------------+
        CONCATENATE xml_declaration
        '<SOAP:Envelope xmlns:SOAP="http://schemas.xmlsoap.org/soap/envelope/">'
        '<SOAP:Header>'
          '<sap:Main xmlns:sap="http://sap.com/xi/XI/Message/30" versionMajor="3" versionMinor="1" SOAP:mustUnderstand="1">'
            '<sap:MessageClass>ApplicationMessage</sap:MessageClass>'
            '<sap:ProcessingMode>asynchronous</sap:ProcessingMode>'
            '<sap:MessageId>' msgid '</sap:MessageId>'
            '<sap:TimeSent>' ts  '</sap:TimeSent>'
            '<sap:Sender>'
              '<sap:Party agency="http://sap.com/xi/XI" scheme="XIParty"/>'
              '<sap:Service>' bs_name '</sap:Service>'
              '</sap:Sender>'
            '<sap:Receiver>' INTO lv_idocout_s.
        CASE control-rcvprt .
          WHEN 'LS'.
            CONCATENATE lv_idocout_s
              '<sap:Party agency="http://sap.com/xi/XI" scheme="XIParty"/>'
              '<sap:Service>' rcvprn '</sap:Service>' INTO lv_idocout_s .
          WHEN OTHERS.
            CONCATENATE lv_idocout_s
              '<sap:Party agency="http://sap.com/xi/XI" scheme="XIParty">' rcvprn '</sap:Party>'
              '<sap:Service></sap:Service>' INTO lv_idocout_s .
        ENDCASE.
        CONCATENATE lv_idocout_s
            '</sap:Receiver>' INTO lv_idocout_s .
        CASE custv-custsendns .
          WHEN ' '.
            CONCATENATE lv_idocout_s
            '<sap:Interface namespace="urn:sap-com:document:sap:idoc:messages" >' INTO lv_idocout_s .
          WHEN OTHERS.
            CONCATENATE lv_idocout_s
            '<sap:Interface namespace="' custv-custsendns '" >' INTO lv_idocout_s .
        ENDCASE.
        CASE custv-custsendif .
          WHEN ' '.
            CONCATENATE lv_idocout_s defaultif INTO lv_idocout_s .
          WHEN OTHERS.
            CONCATENATE lv_idocout_s custv-custsendif INTO lv_idocout_s .
        ENDCASE.
        CONCATENATE lv_idocout_s
            '</sap:Interface>'
          '</sap:Main>'
          '<sap:ReliableMessaging xmlns:sap="http://sap.com/xi/XI/Message/30" SOAP:mustUnderstand="1" SystemAckRequested="' systemack '" SystemErrorAckRequested="' errorack '" >' INTO lv_idocout_s .
        CASE custv-qidxpath .
          WHEN ' ' .
            CONCATENATE lv_idocout_s
            '<sap:QualityOfService>ExactlyOnce</sap:QualityOfService>' INTO lv_idocout_s .
          WHEN OTHERS.
            CONCATENATE lv_idocout_s
            '<sap:QualityOfService>ExactlyOnceInOrder</sap:QualityOfService>'
            '<sap:QueueId>' queueid '</sap:QueueId>'  INTO lv_idocout_s .
        ENDCASE.
        CONCATENATE lv_idocout_s
          '</sap:ReliableMessaging>'
          '<sap:DynamicConfiguration xmlns:sap="http://sap.com/xi/XI/Message/30" SOAP:mustUnderstand="1">'
            '<sap:Record namespace="http://sap.com/xi/XI/System/IDoc_AAE" name="RCVPRN">' control-rcvprn '</sap:Record>'
            '<sap:Record namespace="http://sap.com/xi/XI/System/IDoc_AAE" name="DOCNUMS">' control-docnum '</sap:Record>'
            '<sap:Record namespace="http://sap.com/xi/XI/System/IDoc_AAE" name="AckData">' control-docnum ';' control-rcvprn '</sap:Record>'
          '</sap:DynamicConfiguration>'
          '<sap:HopList xmlns:sap="http://sap.com/xi/XI/Message/30" SOAP:mustUnderstand="1">'
            '<sap:Hop timeStamp="' ts '" wasRead="false">'
              '<sap:Engine type="AE">af.pot.pot</sap:Engine>'
              '<sap:Adapter namespace="http://sap.com/xi/XI/System">IDoc_AAE</sap:Adapter>'
              '<sap:MessageId>' msgid '</sap:MessageId>'
              '<sap:Info>localejbs/IDocAckBean</sap:Info>'
            '</sap:Hop>'
          '</sap:HopList>'
        '</SOAP:Header>'
        '<SOAP:Body>'
        idoc_string
        '  </SOAP:Body>'
      '</SOAP:Envelope>'
    INTO lv_idocout_s.
* +-------------------------------------------------------------------------------------------------+
* | Prepare output and convert from string to xstring, default UTF-8
* +-------------------------------------------------------------------------------------------------+
        CLEAR outbound_xml.
        outbound_xml =  cl_abap_codepage=>convert_to( source = lv_idocout_s ).
* +-------------------------------------------------------------------------------------------------+
* | Error Handling
* +-------------------------------------------------------------------------------------------------+
        IF errorcount <> 0.
          RAISE EXCEPTION TYPE cx_abap_load_error.
        ENDIF.
      CATCH cx_root INTO DATA(e_text).
        protocol = create_message(
          iv_msgno = '006'
          iv_msgv1 = 'ZCL_IM_IDOC_XML_ENVELOPE_O' ).
        error = abap_true.
        RETURN.
    ENDTRY.
  ENDMETHOD.
ENDCLASS.

100

101

102

103

104

105

106

107

108

109

110

111

112

113

114

115

116

117

118

119

120

121

122

123

124

125

126

127

128

129

130

131

132

133

134

135

136

137

138

139

140

141

142

143

144

145

146

147

148

149

150

151

152

153

154

155

156

157

158

159

160

161

162

163

164

165

166

167

168

169

170

171

172

173

174

175

176

177

178

179

180

181

182

183

184

185

186

187

188

189

190

191

192

193

194

195

196

197

198

199

200

201

202

203

204

205

206

207

208

209

210

211

212

213

214

215

216

217

218

219

220

221

222

223

224

225

226

227

228

229

230

231

232

233

234

235

236

237

238

239

240

241

242

243

244

245

246

247

248

249

250

251

252

253

254

255

256

257

258

259

260

261

262

263

264

265

266

267

268

269

270

271

272

273

274

275

276

277

278

279

280

281

282

283

284

285

286

287

288

289

290

291

292

293

294

295

296

297

298

299

300

301

302

303

304

305

306

307

308

309

310

311

312

313

314

315

316

317

318

319

320

321

322

323

324

325

326

327

328

329

330

331

332

333

334

335

336

337

338

339

340

341

342

343

344

345

346

347

348

349

350

351

352

353

354

355

356

357

358

359

360

361

362

363

364

365

366

367

368

369

370

371

372

373

374

375

376

377

378

379

380

381

382

383

384

385

386

387

388

389

390

391

392

393

394

395

396

397

398

399

400

401

402

403

404

405

406

407

408

409

410

411

412

413

414

415

416

417

418

419

420

421

422

423

424

425

426

427

428

429

430

431

432

433

434

435

436

437

438

439

440

441

442

443

444

445

446

447

448

449

450

451

452

453

454

455

456

457

458

459

460

461

462

CLASS zcl_im_idoc_xml_envelope_o DEFINITION

PUBLIC

FINAL

CREATE PUBLIC .

PUBLIC SECTION.

INTERFACES if_ex_idoc_xml_envelope_ou .

PROTECTED SECTION.

PRIVATE SECTION.

CONSTANTS gc_idoc_xml_envelope_ou_name TYPE string VALUE 'ZCLIMIDOCXMLENV_O' ##NO_TEXT.

CONSTANTS gc_idoc_xml_envelope_ou_rcvpor TYPE string VALUE '^.*PO.{0,1}_.*$' ##NO_TEXT.

CONSTANTS gc_idoc_xml_zidocenvelpout_v TYPE string VALUE 'ZIDOCENVELOPEOUT' ##NO_TEXT.

CONSTANTS gc_direct_outbound TYPE string VALUE '1' ##NO_TEXT.

METHODS create_message

IMPORTING

!iv_msgno TYPE edi_stamno

!iv_msgv1 TYPE any OPTIONAL

!iv_msgv2 TYPE any OPTIONAL

!iv_msgv3 TYPE any OPTIONAL

!iv_msgv4 TYPE any OPTIONAL

RETURNING

VALUE(rs_message) TYPE idocstatmp .

METHODS evaluate_xpath

IMPORTING

!idoc_string TYPE string

!xpath TYPE zxpath

RETURNING

VALUE(result) TYPE string .

METHODS getqueueid

IMPORTING

!control TYPE edidc

!xpath TYPE zxpath

!xpathresult TYPE zxpath

!zrcvprn TYPE zrcvprn

RETURNING

VALUE(queueid) TYPE char16 .

METHODS findenveloperecord

IMPORTING

!control TYPE edidc

!xpath TYPE zxpath

!xpathresult TYPE zxpath

!zrcvprn TYPE zrcvprn

RETURNING

VALUE(env_record) TYPE zidocenveloutnro .

ENDCLASS.

CLASS ZCL_IM_IDOC_XML_ENVELOPE_O IMPLEMENTATION.

* <SIGNATURE>---------------------------------------------------------------------------------------+

* | Instance Private Method ZCL_IM_IDOC_XML_ENVELOPE_O->CREATE_MESSAGE

* +-------------------------------------------------------------------------------------------------+

* | [--->] IV_MSGNO TYPE EDI_STAMNO

* | [--->] IV_MSGV1 TYPE ANY(optional)

* | [--->] IV_MSGV2 TYPE ANY(optional)

* | [--->] IV_MSGV3 TYPE ANY(optional)

* | [--->] IV_MSGV4 TYPE ANY(optional)

* | [<-()] RS_MESSAGE TYPE IDOCSTATMP

* +--------------------------------------------------------------------------------------</SIGNATURE>

METHOD create_message.

* Check for consistency

IF iv_msgno IS INITIAL.

RAISE EXCEPTION TYPE cx_fatal_exception.

ENDIF.

CLEAR rs_message.

* Fill message structure

rs_message-stamid = gc_idoc_xml_envelope_ou_name.

rs_message-stamno = iv_msgno.

IF iv_msgv1 IS SUPPLIED.

rs_message-stapa1 = iv_msgv1.

ENDIF.

IF iv_msgv2 IS SUPPLIED.

rs_message-stapa2 = iv_msgv2.

ENDIF.

IF iv_msgv3 IS SUPPLIED.

rs_message-stapa3 = iv_msgv3.

ENDIF.

IF iv_msgv4 IS SUPPLIED.

rs_message-stapa4 = iv_msgv4.

ENDIF.

rs_message-repid = sy-repid.

ENDMETHOD.

* <SIGNATURE>---------------------------------------------------------------------------------------+

* | Instance Private Method ZCL_IM_IDOC_XML_ENVELOPE_O->EVALUATE_XPATH

* +-------------------------------------------------------------------------------------------------+

* | [--->] IDOC_STRING TYPE STRING

* | [--->] XPATH TYPE ZXPATH

* | [<-()] RESULT TYPE STRING

* +--------------------------------------------------------------------------------------</SIGNATURE>

METHOD evaluate_xpath.

DATA: separator(1) TYPE c VALUE '&',

full TYPE abap_bool.

* DESCRIBE FIELD result LENGTH DATA(clen) IN CHARACTER MODE. " no neeed to loop more than max length

DATA(xpp) = NEW cl_proxy_xpath( ).

xpp->set_source_string( idoc_string ).

xpp->run( expression = xpath ).

DATA(nodes) = xpp->get_nodes( ).

IF NOT nodes IS INITIAL.

DATA(node) = nodes->get_next( ).

WHILE node IS BOUND AND NOT node IS INITIAL AND NOT full = abap_true.

DATA(s) = node->get_value( ).

DATA(typ) = node->get_type( ).

CONCATENATE result s INTO result SEPARATED BY separator .

node = nodes->get_next( ).

ENDWHILE.

REPLACE REGEX '^' && separator && '+|' && separator && '+$' IN result WITH ''. " remove pipe at the end if there is one

ENDIF.

ENDMETHOD.

* <SIGNATURE>---------------------------------------------------------------------------------------+

* | Instance Private Method ZCL_IM_IDOC_XML_ENVELOPE_O->FINDENVELOPERECORD

* +-------------------------------------------------------------------------------------------------+

* | [--->] CONTROL TYPE EDIDC

* | [--->] XPATH TYPE ZXPATH

* | [--->] XPATHRESULT TYPE ZXPATH

* | [--->] ZRCVPRN TYPE ZRCVPRN

* | [<-()] ENV_RECORD TYPE ZIDOCENVELOUTNRO

* +--------------------------------------------------------------------------------------</SIGNATURE>

METHOD findenveloperecord.

SELECT * FROM zidocenveloutnro

WHERE rcvprt = @control-rcvprt

AND rcvprn = @control-rcvprn

AND rcvpfc = @control-rcvpfc

AND mestyp = @control-mestyp

AND mescod = @control-mescod

AND mesfct = @control-mesfct

AND test = @control-test

AND idoctp = @control-idoctp

AND cimtyp = @control-cimtyp

AND xpathresult = @xpathresult

AND zrcvprn = @zrcvprn

AND qidxpath_v = @xpath

INTO @env_record.

ENDSELECT.

ENDMETHOD.

* <SIGNATURE>---------------------------------------------------------------------------------------+

* | Instance Private Method ZCL_IM_IDOC_XML_ENVELOPE_O->GETQUEUEID

* +-------------------------------------------------------------------------------------------------+

* | [--->] CONTROL TYPE EDIDC

* | [--->] XPATH TYPE ZXPATH

* | [--->] XPATHRESULT TYPE ZXPATH

* | [--->] ZRCVPRN TYPE ZRCVPRN

* | [<-()] QUEUEID TYPE CHAR16

* +--------------------------------------------------------------------------------------</SIGNATURE>

METHOD getqueueid.

DATA: enqueued TYPE abap_bool,

wa_record TYPE zidocenveloutnro,

rc TYPE inri-returncode,

loops TYPE n VALUE 1,

maxloops TYPE i VALUE 10.

TRY.

* Query to get the unique (single) record if same was already processed.

wa_record = me->findenveloperecord( control = control xpath = xpath xpathresult = xpathresult zrcvprn = zrcvprn ).

WHILE NOT enqueued EQ abap_true AND loops < maxloops AND wa_record IS INITIAL. " enqueue table for insert

loops = loops + 1. " avoid endless loop

* Enqueue for insert, if new

CALL FUNCTION 'ENQUEUE_E_TABLE'

EXPORTING

mode_rstable = 'E'

_wait = 'X'

tabname = 'ZIDOCENVELOUTNRO'.

IF sy-subrc = 0.

enqueued = abap_true.

ELSE.

IF loops >= maxloops .

RAISE EXCEPTION TYPE cx_abap_pragma_enqueue.

ENDIF.

WAIT UP TO 2 SECONDS.

ENDIF.

* Check again to make sure no insert happened during wait for enqueue

wa_record = me->findenveloperecord( control = control xpath = xpath xpathresult = xpathresult zrcvprn = zrcvprn ).

IF enqueued EQ abap_true AND wa_record IS INITIAL.

" should only be reached if enqued

IF xpathresult IS NOT INITIAL. " only if serialization is required

CALL FUNCTION 'NUMBER_GET_NEXT'

EXPORTING

nr_range_nr = 'Z1'

object = 'ZQUEUEID'

IMPORTING

number = queueid

returncode = rc.

IF sy-subrc <> 0 OR rc <> 0.

RAISE EXCEPTION TYPE cx_abap_load_error.

ENDIF.

wa_record = VALUE #( BASE CORRESPONDING #( control ) qidxpath_v = xpath xpathresult = xpathresult changedate = sy-datum changetime = sy-uzeit queueid = queueid zrcvprn = zrcvprn ).

INSERT INTO zidocenveloutnro VALUES wa_record.

COMMIT WORK.

ENDIF.

*end of enque, if new

ENDWHILE.

* return queueid (also empty/initial ones) if successfully retrieved otherwise exception

IF wa_record IS NOT INITIAL.

queueid = wa_record-queueid.

ELSE.

RAISE EXCEPTION TYPE cx_abap_load_error.

ENDIF.

CATCH cx_root.

RAISE EXCEPTION TYPE cx_abap_load_error.

CLEANUP.

IF enqueued EQ abap_true.

CALL FUNCTION 'DEQUEUE_E_TABLE'

EXPORTING

mode_rstable = 'E'

tabname = 'ZIDOCENVELOUTNRO'.

IF sy-subrc <> 0.

RAISE EXCEPTION TYPE cx_abap_load_error.

ENDIF.

ENDTRY.

ENDMETHOD.

* <SIGNATURE>---------------------------------------------------------------------------------------+

* | Instance Public Method ZCL_IM_IDOC_XML_ENVELOPE_O->IF_EX_IDOC_XML_ENVELOPE_OU~PROCESS

* +-------------------------------------------------------------------------------------------------+

* | [--->] IDOC_XML TYPE XSTRING

* | [--->] CONTROL TYPE EDIDC

* | [<---] OUTBOUND_XML TYPE XSTRING

* | [<---] ERROR TYPE CHAR1

* | [<---] PROTOCOL TYPE IDOCSTATMP

* +--------------------------------------------------------------------------------------</SIGNATURE>

METHOD if_ex_idoc_xml_envelope_ou~process.

TYPE-POOLS: ixml.

DATA: lo_stream_factory TYPE REF TO if_ixml_stream_factory,

lo_input_stream TYPE REF TO if_ixml_istream,

lo_output_stream TYPE REF TO if_ixml_ostream,

lo_document TYPE REF TO if_ixml_document,

lo_parser TYPE REF TO if_ixml_parser,

lo_parse_error TYPE REF TO if_ixml_parse_error,

lo_renderer TYPE REF TO if_ixml_renderer,

lo_ixml TYPE REF TO if_ixml.

DATA:

lv_idocout_s TYPE string,

errorcount TYPE integer VALUE 0.

* Reset exporting parameters

CLEAR outbound_xml.

CLEAR error.

CLEAR protocol.

*+-------------------------------------------------------------------------------------------------+

* Do initial checks and return if they are not fullfilled with original payload

*+-------------------------------------------------------------------------------------------------+

outbound_xml = idoc_xml.

IF idoc_xml IS INITIAL.

RETURN. " Exit anyway

ENDIF.

* Check the port to be relevant

DATA: portmatch TYPE match_result.

FIND FIRST OCCURRENCE OF REGEX gc_idoc_xml_envelope_ou_rcvpor IN control-rcvpor RESULTS portmatch.

IF portmatch IS INITIAL. " IDOC receiver port is not a *PO[x]_ destiantion

RETURN.

ENDIF.

IF control-direct <> gc_direct_outbound. " Direction is not "1 - Outbound"

RETURN.

ENDIF.

TRY.

* +-------------------------------------------------------------------------------------------------+

* | Convert xstring to string, default UTF-8 encoding

* +-------------------------------------------------------------------------------------------------+

DATA(idoc_string) = cl_abap_codepage=>convert_from( source = idoc_xml ).

* +-------------------------------------------------------------------------------------------------+

* | Save for later and now remove XML declaration from incoming XML

* +-------------------------------------------------------------------------------------------------+

DATA: matches TYPE match_result,

xml_declaration TYPE string.

FIND FIRST OCCURRENCE OF REGEX '<\?xml.*\?>' IN idoc_string RESULTS matches.

xml_declaration = idoc_string+matches-offset(matches-length).

REPLACE REGEX '<\?xml.*\?>' IN idoc_string WITH ''.

* +-------------------------------------------------------------------------------------------------+

* | Retrieve UUID as sysuuid_x

* +-------------------------------------------------------------------------------------------------+

DATA: uuid TYPE sysuuid_x.

CALL FUNCTION 'SYSTEM_UUID_CREATE'

IMPORTING

uuid = uuid.

* +-------------------------------------------------------------------------------------------------+

* | Format Message ID with hyphens as string

* +-------------------------------------------------------------------------------------------------+

DATA(msgid) = cl_soap_wsrmb_helper=>convert_uuid_raw_to_hyphened( uuid ).

* +-------------------------------------------------------------------------------------------------+

* | Get UTC timestamp

* +-------------------------------------------------------------------------------------------------+

DATA: lv_utc TYPE timestamp.

cl_abap_tstmp=>systemtstmp_syst2utc(

EXPORTING

syst_date = sy-datum

syst_time = sy-uzeit

IMPORTING

utc_tstmp = lv_utc ).

errorcount = errorcount + sy-subrc.

* +-------------------------------------------------------------------------------------------------+

* | Convert UTC timestamp into ISO format as string

* +-------------------------------------------------------------------------------------------------+

DATA: ts TYPE string.

ts = cl_xlf_date_time=>create( timestamp = lv_utc ).

* +-------------------------------------------------------------------------------------------------+

* | Retrieve business system name from SLD for sender service

* +-------------------------------------------------------------------------------------------------+

DATA: bs_name TYPE text60,

bs_capt TYPE string,

bs_role TYPE lcr_bs_role.

CALL FUNCTION 'LCR_GET_OWN_BUSINESS_SYSTEM'

EXPORTING

bypassing_cache = ' '

read_from_cache = ' '

update_cache_entry_timestamp = ' '

IMPORTING

bs_key_name = bs_name

bs_caption = bs_capt

bs_role = bs_role.

errorcount = errorcount + sy-subrc.

* +-------------------------------------------------------------------------------------------------+

* | Get data from the customizing table

* +-------------------------------------------------------------------------------------------------+

SELECT SINGLE * FROM zidocenvelopeout

WHERE rcvprt = @control-rcvprt

AND rcvprn = @control-rcvprn

AND rcvpfc = @control-rcvpfc

AND mestyp = @control-mestyp

AND mescod = @control-mescod

AND mesfct = @control-mesfct

AND idoctp = @control-idoctp

AND cimtyp = @control-cimtyp INTO @DATA(custv).

* +-------------------------------------------------------------------------------------------------+

* | Do the mapping of RCVPRN, which might be required for party due to SAP PO not accepting numbers

* +-------------------------------------------------------------------------------------------------+

DATA: rcvprn TYPE zrcvprn.

IF custv-zrcvprn IS NOT INITIAL.

rcvprn = custv-zrcvprn.

ELSE.

rcvprn = control-rcvprn.

ENDIF.

* +-------------------------------------------------------------------------------------------------+

* | Run the Xpath evaluation which is required to set serialization context (QueueId) in SAP PO

* +-------------------------------------------------------------------------------------------------+

DATA: xpathresult TYPE zxpath .

IF custv-qidxpath IS NOT INITIAL.

IF custv-qidxpath(1) = ''''.

xpathresult = custv-qidxpath.

REPLACE ALL OCCURRENCES OF '''' IN xpathresult WITH ''.

ELSE.

xpathresult = me->evaluate_xpath( idoc_string = idoc_string xpath = custv-qidxpath ).

ENDIF.

IF xpathresult IS INITIAL.

protocol = create_message(

iv_msgno = '006'

iv_msgv1 = 'Xpath found no value'

iv_msgv2 = 'Badi: ZCL_IM_IDOC_XML_ENVELOPE_O').

error = abap_true.

RETURN.

ENDIF.

* +-------------------------------------------------------------------------------------------------+

* | Data preparation steps

* +-------------------------------------------------------------------------------------------------+

DATA: systemack TYPE string,

errorack TYPE string,

defaultif TYPE string,

queueid TYPE char16.

defaultif = control-mestyp && '.' && control-idoctp && '.' && control-cimtyp. "In case no custom Idoc interface required

REPLACE REGEX '\.$' IN defaultif WITH '' . " remove dot at the end in case no cimtype

IF custv-systemack = abap_false. " convert to xsd:boolean

systemack = 'false'.

ELSE.

systemack = 'true'.

ENDIF.

IF custv-errorack = abap_false.

errorack = 'false'.

ELSE.

errorack = 'true'.

ENDIF.

" will also be called in case no queuueid is required for join of view ZIDOCENVELPOUT_V

queueid = me->getqueueid( control = control xpath = custv-qidxpath xpathresult = xpathresult zrcvprn = custv-zrcvprn ).

* +-------------------------------------------------------------------------------------------------+

* | Add SAP PO SOAP envelope around xml to fill xi protocol parameters dnyamically

* +-------------------------------------------------------------------------------------------------+

CONCATENATE xml_declaration

'<SOAP:Envelope xmlns:SOAP="http://schemas.xmlsoap.org/soap/envelope/">'

'<SOAP:Header>'

'<sap:Main xmlns:sap="http://sap.com/xi/XI/Message/30" versionMajor="3" versionMinor="1" SOAP:mustUnderstand="1">'

'<sap:MessageClass>ApplicationMessage</sap:MessageClass>'

'<sap:ProcessingMode>asynchronous</sap:ProcessingMode>'

'<sap:MessageId>' msgid '</sap:MessageId>'

'<sap:TimeSent>' ts '</sap:TimeSent>'

'<sap:Sender>'

'<sap:Party agency="http://sap.com/xi/XI" scheme="XIParty"/>'

'<sap:Service>' bs_name '</sap:Service>'

'</sap:Sender>'

'<sap:Receiver>' INTO lv_idocout_s.

CASE control-rcvprt .

WHEN 'LS'.

CONCATENATE lv_idocout_s

'<sap:Party agency="http://sap.com/xi/XI" scheme="XIParty"/>'

'<sap:Service>' rcvprn '</sap:Service>' INTO lv_idocout_s .

WHEN OTHERS.

CONCATENATE lv_idocout_s

'<sap:Party agency="http://sap.com/xi/XI" scheme="XIParty">' rcvprn '</sap:Party>'

'<sap:Service></sap:Service>' INTO lv_idocout_s .

ENDCASE.

CONCATENATE lv_idocout_s

'</sap:Receiver>' INTO lv_idocout_s .

CASE custv-custsendns .

WHEN ' '.

CONCATENATE lv_idocout_s

'<sap:Interface namespace="urn:sap-com:document:sap:idoc:messages" >' INTO lv_idocout_s .

WHEN OTHERS.

CONCATENATE lv_idocout_s

'<sap:Interface namespace="' custv-custsendns '" >' INTO lv_idocout_s .

ENDCASE.

CASE custv-custsendif .

WHEN ' '.

CONCATENATE lv_idocout_s defaultif INTO lv_idocout_s .

WHEN OTHERS.

CONCATENATE lv_idocout_s custv-custsendif INTO lv_idocout_s .

ENDCASE.

CONCATENATE lv_idocout_s

'</sap:Interface>'

'</sap:Main>'

'<sap:ReliableMessaging xmlns:sap="http://sap.com/xi/XI/Message/30" SOAP:mustUnderstand="1" SystemAckRequested="' systemack '" SystemErrorAckRequested="' errorack '" >' INTO lv_idocout_s .

CASE custv-qidxpath .

WHEN ' ' .

CONCATENATE lv_idocout_s

'<sap:QualityOfService>ExactlyOnce</sap:QualityOfService>' INTO lv_idocout_s .

WHEN OTHERS.

CONCATENATE lv_idocout_s

'<sap:QualityOfService>ExactlyOnceInOrder</sap:QualityOfService>'

'<sap:QueueId>' queueid '</sap:QueueId>' INTO lv_idocout_s .

ENDCASE.

CONCATENATE lv_idocout_s

'</sap:ReliableMessaging>'

'<sap:DynamicConfiguration xmlns:sap="http://sap.com/xi/XI/Message/30" SOAP:mustUnderstand="1">'

'<sap:Record namespace="http://sap.com/xi/XI/System/IDoc_AAE" name="RCVPRN">' control-rcvprn '</sap:Record>'

'<sap:Record namespace="http://sap.com/xi/XI/System/IDoc_AAE" name="DOCNUMS">' control-docnum '</sap:Record>'

'<sap:Record namespace="http://sap.com/xi/XI/System/IDoc_AAE" name="AckData">' control-docnum ';' control-rcvprn '</sap:Record>'

'</sap:DynamicConfiguration>'

'<sap:HopList xmlns:sap="http://sap.com/xi/XI/Message/30" SOAP:mustUnderstand="1">'

'<sap:Hop timeStamp="' ts '" wasRead="false">'

'<sap:Engine type="AE">af.pot.pot</sap:Engine>'

'<sap:Adapter namespace="http://sap.com/xi/XI/System">IDoc_AAE</sap:Adapter>'

'<sap:MessageId>' msgid '</sap:MessageId>'

'<sap:Info>localejbs/IDocAckBean</sap:Info>'

'</sap:Hop>'

'</sap:HopList>'

'</SOAP:Header>'

'<SOAP:Body>'

idoc_string

' </SOAP:Body>'

'</SOAP:Envelope>'

INTO lv_idocout_s.

* +-------------------------------------------------------------------------------------------------+

* | Prepare output and convert from string to xstring, default UTF-8

* +-------------------------------------------------------------------------------------------------+

CLEAR outbound_xml.

outbound_xml = cl_abap_codepage=>convert_to( source = lv_idocout_s ).

* +-------------------------------------------------------------------------------------------------+

* | Error Handling

* +-------------------------------------------------------------------------------------------------+

IF errorcount <> 0.

RAISE EXCEPTION TYPE cx_abap_load_error.

ENDIF.

CATCH cx_root INTO DATA(e_text).

protocol = create_message(

iv_msgno = '006'

iv_msgv1 = 'ZCL_IM_IDOC_XML_ENVELOPE_O' ).

error = abap_true.

RETURN.

ENDTRY.

ENDMETHOD.

ENDCLASS.

Customizing

Use SQL for the first insert into ZIDOCENVELOPEOUT, e.g.

insert into sapsr3.ZIDOCENVELOPEOUT (MANDT, RCVPRN, RCVPRT, RCVPFC, MESTYP, MESCOD, MESFCT, TEST) values ('your client', 'your LS', 'LS', ' ', 'your Idoc Type', ' ', ' ', ' ');
commit;

1 2	insert into sapsr3.ZIDOCENVELOPEOUT (MANDT, RCVPRN, RCVPRT, RCVPFC, MESTYP, MESCOD, MESFCT, TEST) values ('your client', 'your LS', 'LS', ' ', 'your Idoc Type', ' ', ' ', ' '); commit;

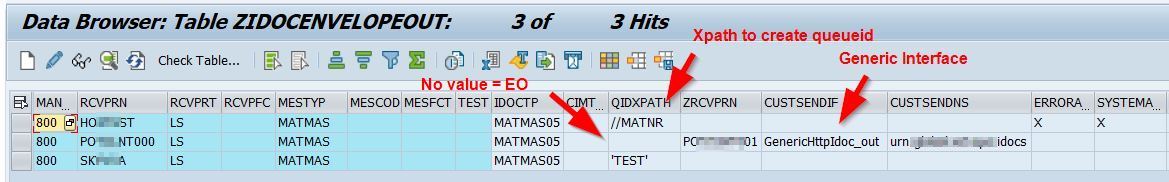

Mandatory, if you want to apply a rule, otherwise it should also work without any transformation:From now on, you can edit the table in SE16, if the client settings allow it.
Consult your Basis if you face some issues.

Please maintain IDocTp and CimTp like you have maintained it in WE20 partner profile to match outgoing IDocs.

Optional:
You can enter your Custom / Generic IDoc Interface name in column „CustSendIf“.
You can enter namespace of Custom / Generic IDoc Interface name in column „CustSendNs“.
You can enter your virtual receiver in column „zRcvPrn“:
–> in case of LI/KU/GP… the value will appear in party field, in case of LS it will appear in the service field.
You can enter your Xpath-Expression for creating the serialization context in column „qIdXpath“:
-> In case you fill it, the QoS will be EOIO automatically – make sure to enter an Xpath which returns a result.
-> In case you leave it empty the QoS will be EO.

Monitoring

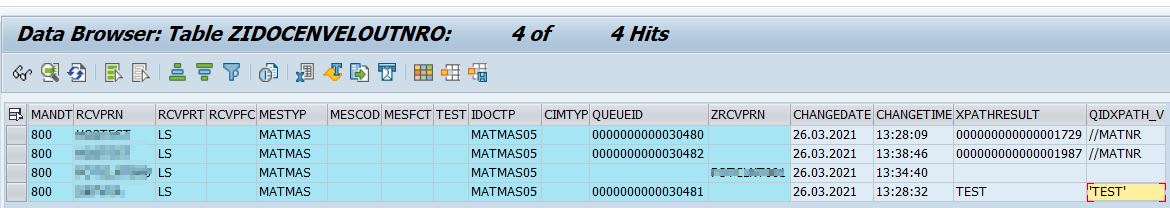

You can monitor the assignment of queueids (from number range object), when they are created the first time in table ZIDOCENVELOUTNRO.
If you want, you can create a view joining ZIDOCENVELOPEOUT and ZIDOCENVELOUTNRO in order to suppress historic values (not part of this blog entry).

Outlook

Full function with an additional SAP PO Adapter Module in case persistence is switched on:

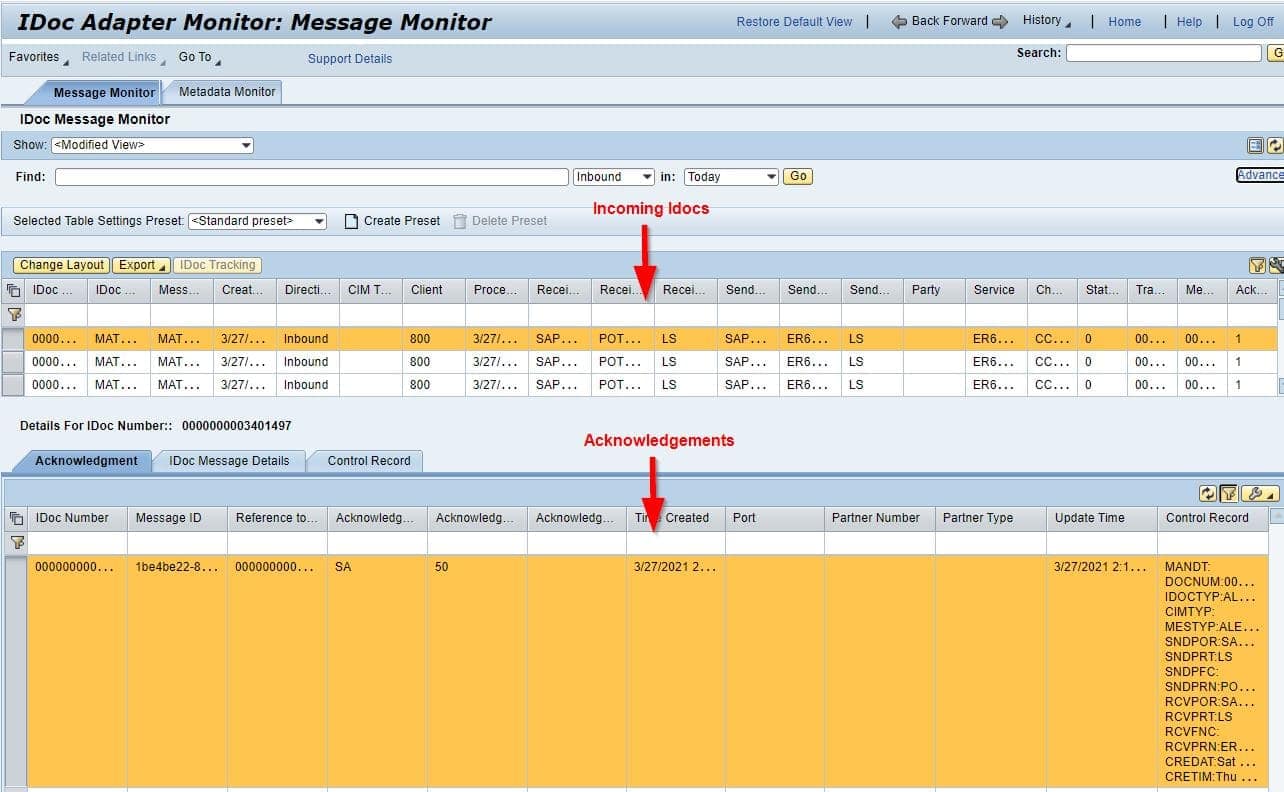

See incoming IDocs over SAP PO – Generic IDoc Outbound Interface in IDoc monitor (KB 2345912 – IDoc Message Monitor)
Be able to return Acknowledgements and monitor them using standard SAP PO IDoc Monitor (KB: 2992965 – IDoc ALEAUD)
